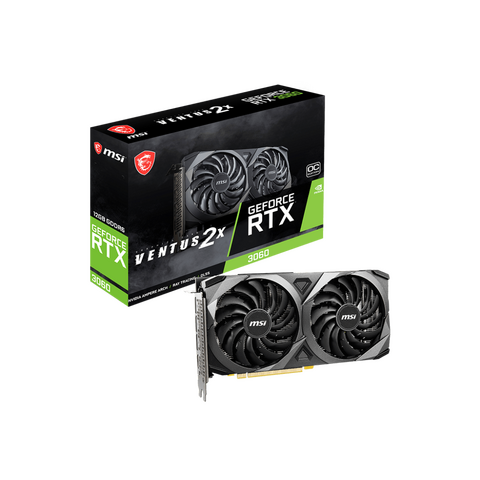

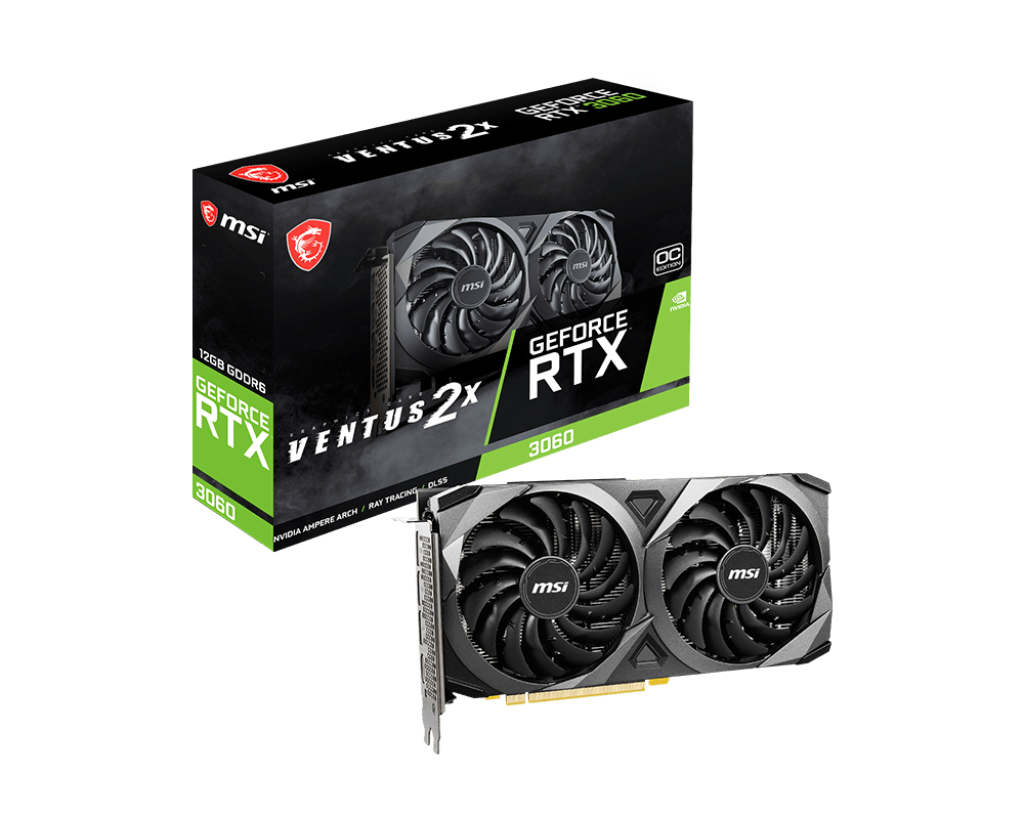

MSI GeForce RTX 3060 VENTUS 2X OC 12GB GDDR6 Graphics Card

SPECIFICATIONS

Brand MSI

Series VENTUS 2 12G OC

Model GeForce RTX 3060

Chipset

GPU GeForce RTX 3060

Chipset Manufacturer NVIDIA

Interface PCI-E 4.0 x16

Base Clock 1320 MHz

Boost Clock 1807 MHz

CUDA Cores 3584

GPU Architecture NVIDIA Ampere

Memory

Effective Memory Clock 15 Gbps

Memory Size 12GB

Memory Interface 192-bit

Memory Type GDDR6

3D API

DirectX Microsoft DirectX 12 Ultimate

OpenGL 4.6

Vulkan Yes, Vulkan RT API

Connectivity

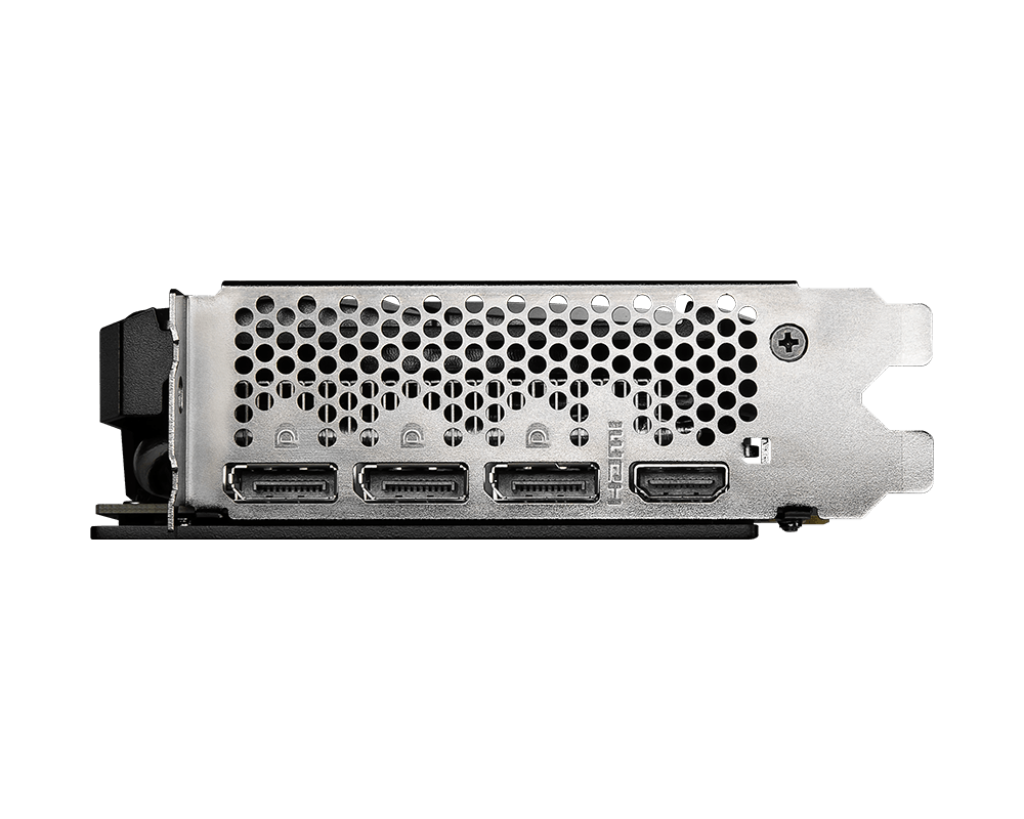

Ports 3x DisplayPort v1.4

1x HDMI 2.1 (4K@120Hz)

HDCP Support Yes

Multi-Monitor Support 4

Maximum Digital Resolution 7680 x 4320

VR Ready Yes

General

SLI Support N/A

Features MSI TORX Fan 3.0

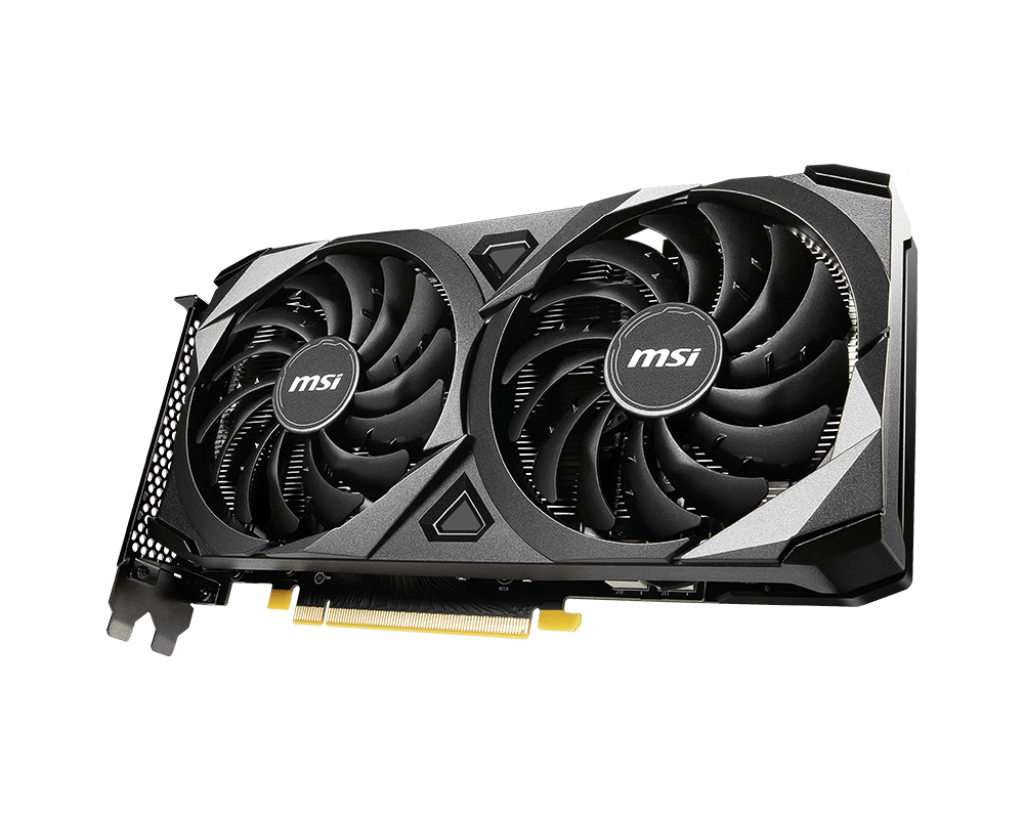

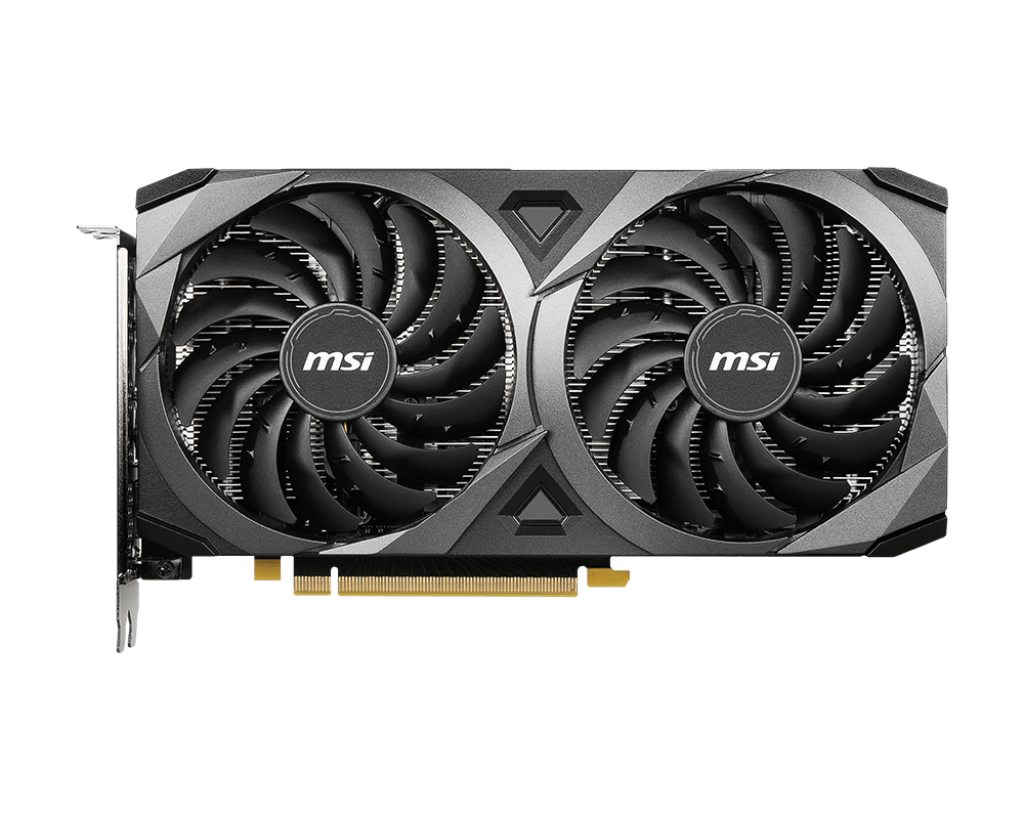

Dual Fan Thermal Design

MSI Afterburner Overclocking Utility

MSI Center Software

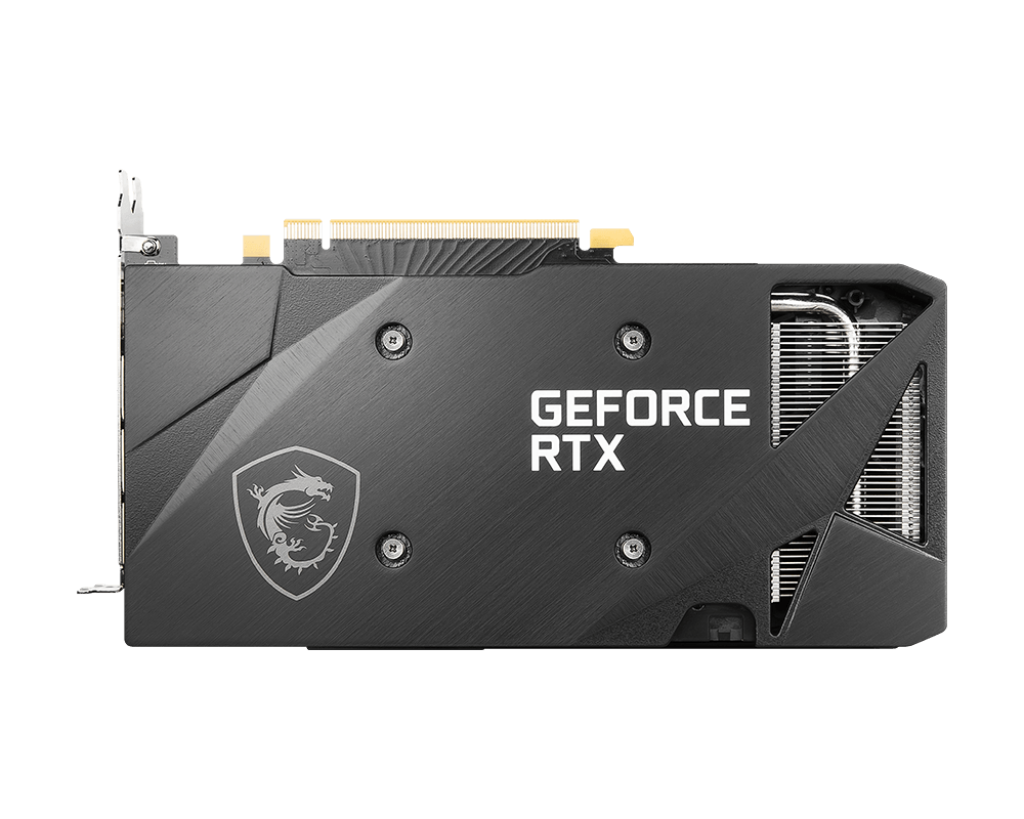

Reinforcing Backplate

2nd Gen Ray Tracing Cores

3rd Gen Tensor Cores

PCI Express Gen 4

Real-Time Ray Tracing Technology

NVIDIA DLSS

NVIDIA GeForce Experience

NVIDIA Ansel

NVIDIA FreeStyle

NVIDIA ShadowPlay

NVIDIA Highlights

NVIDIA G-SYNC

Game Ready Drivers

NVIDIA Studio Drivers

NVIDIA GPU Boost

NVIDIA Encoder, 7th Generation

NVIDIA Decoder, 5th Generation

Power Requirements

Recommended Power Supply 550W

Power Consumption 170W

Power Connector 1x 8-Pin

Physical Aspects

Form Factor ATX

Slot Width 2-Slot

Dimensions 235mm x 124mm x 42mm

Warranty Information

Warranty 3 Year Warranty
