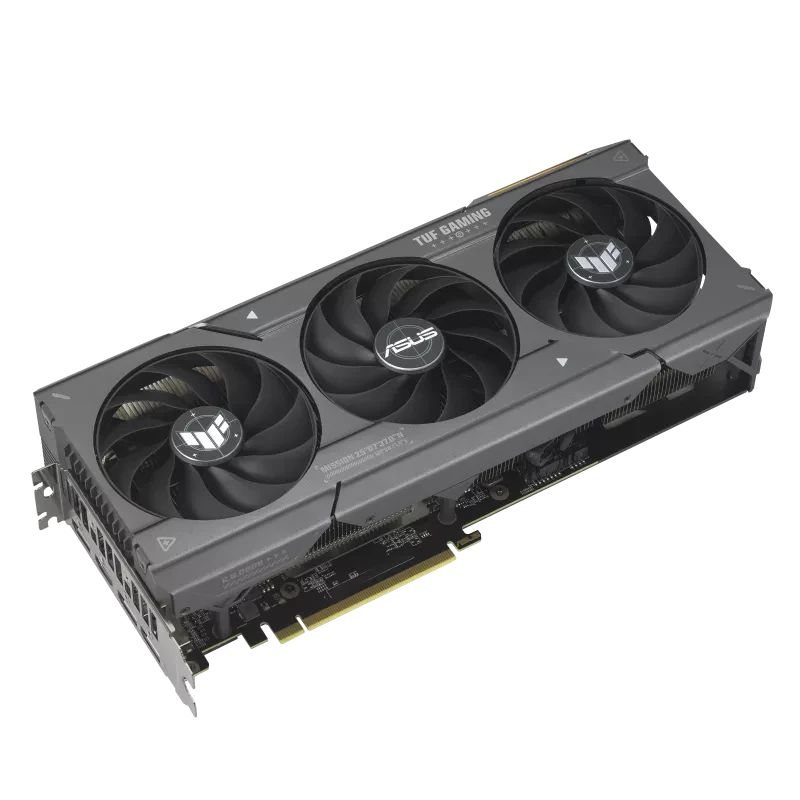

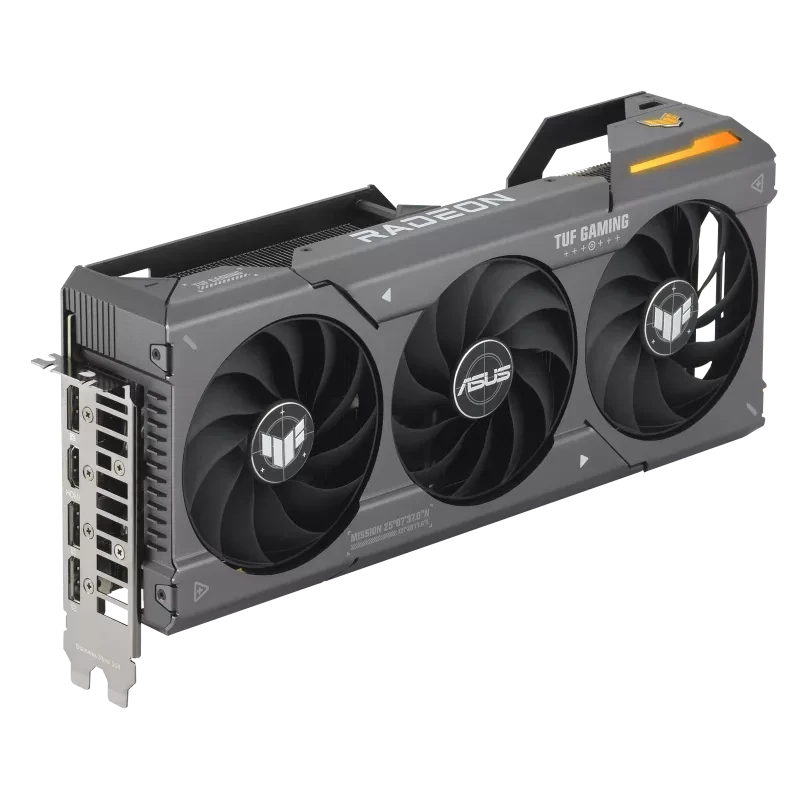

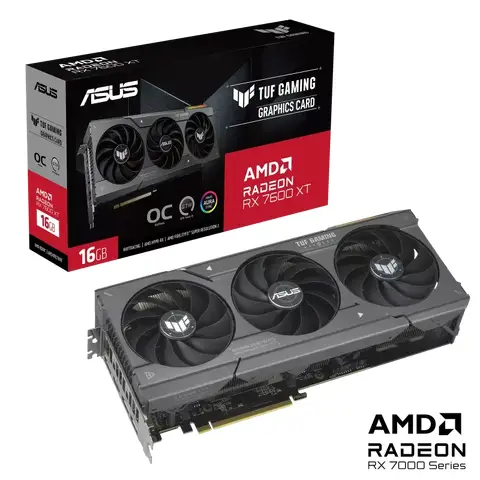

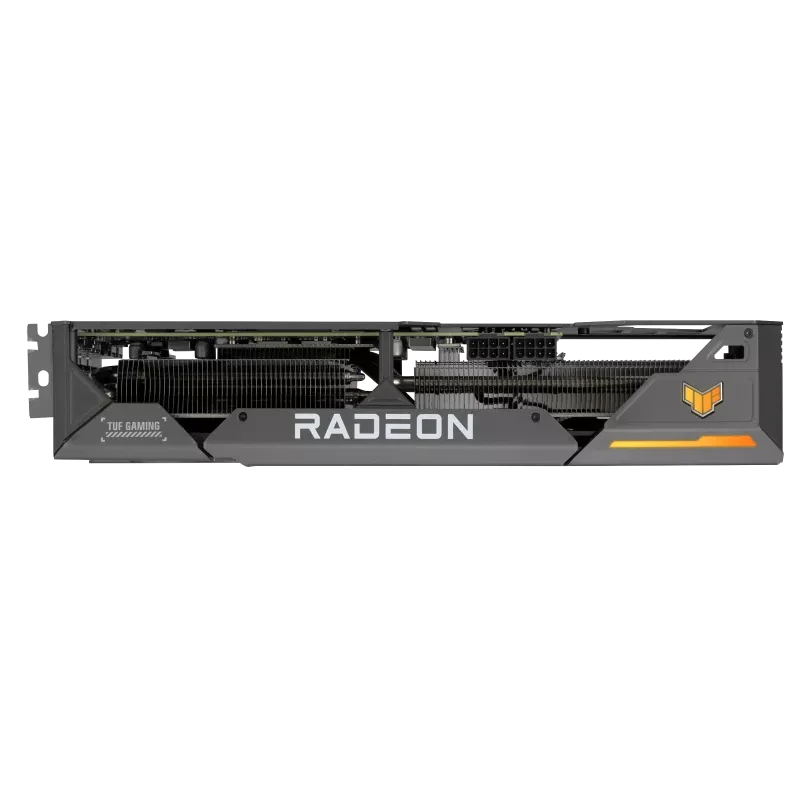

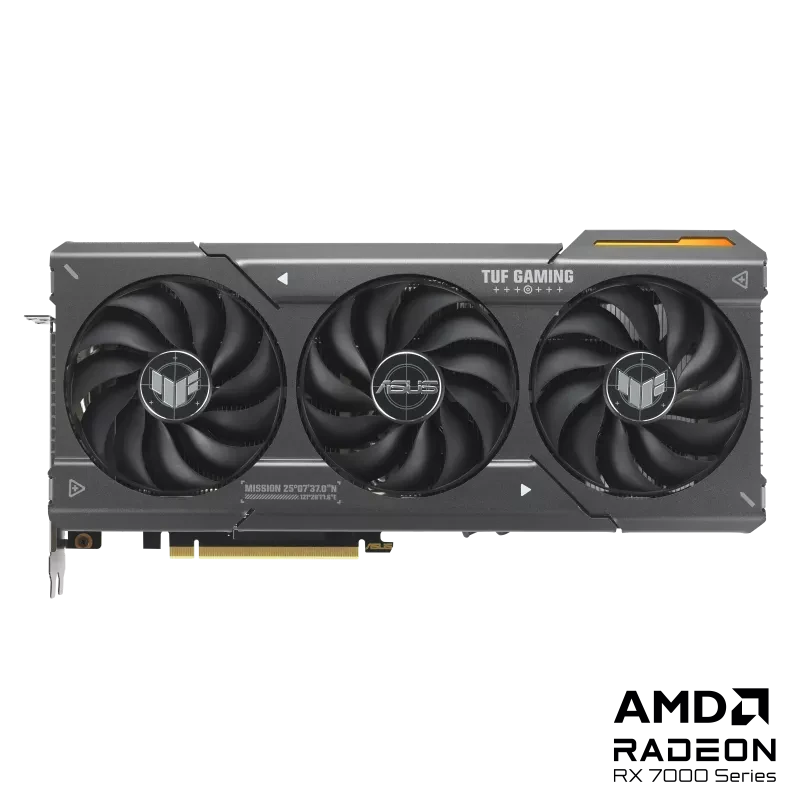

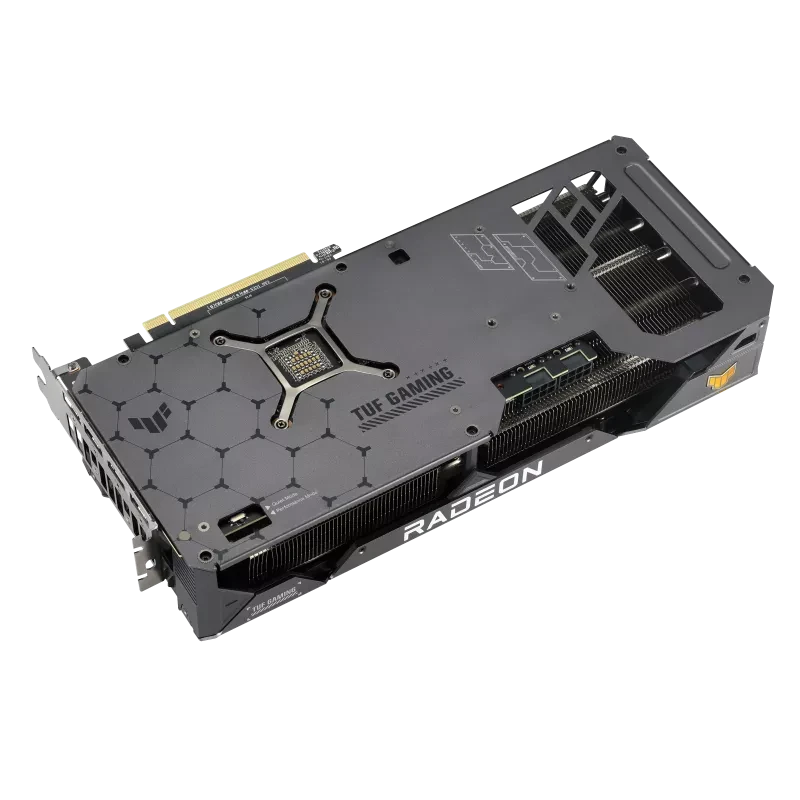

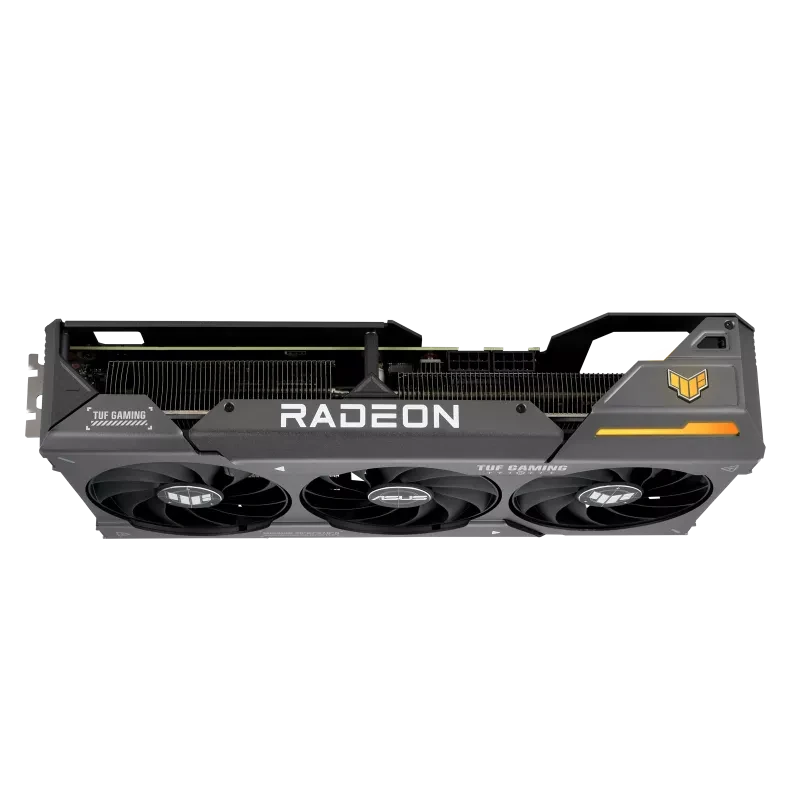

ASUS TUF GAMING Radeon RX 7600 XT OC Edition 16GB GDDR6 Graphics Card

Graphics Processing Radeon RX 7600 XT

Core Clock OC Mode: Up to 2830 MHz (Boost Clock) / Up to 2559 MHz (Game Clock)

Default Mode: Up to 2810 MHz (Boost Clock) / Up to 2539 MHz (Game Clock)

Stream Processors 2048

Ray Accelerators 32

Memory Clock 18000 MHz

Memory Size 16 GB

Memory Type GDDR6

Memory Bus 128 bit

Memory Bandwidth (GB/sec) 288 GB/s

Card Bus PCI-E 4.0 x16

Digital max resolution 7680x4320

Multi-view 4

Card size 300 x 143 x 59 mm

PCB Form ATX

DirectX 12 Ultimate

OpenGL 4.6

Recommended PSU 600W

Power Connectors 2 x 8-Pin

Output 3 x DisplayPort 2.1

1 x HDMI 2.1

Multi-GPU Support No

Accessories TUF Certificate of Reliability

TUF Gaming Graphics Card Holder

TUF Velcro Hook & Loop

Collection Card

Thank You Card

Speedsetup Manual
