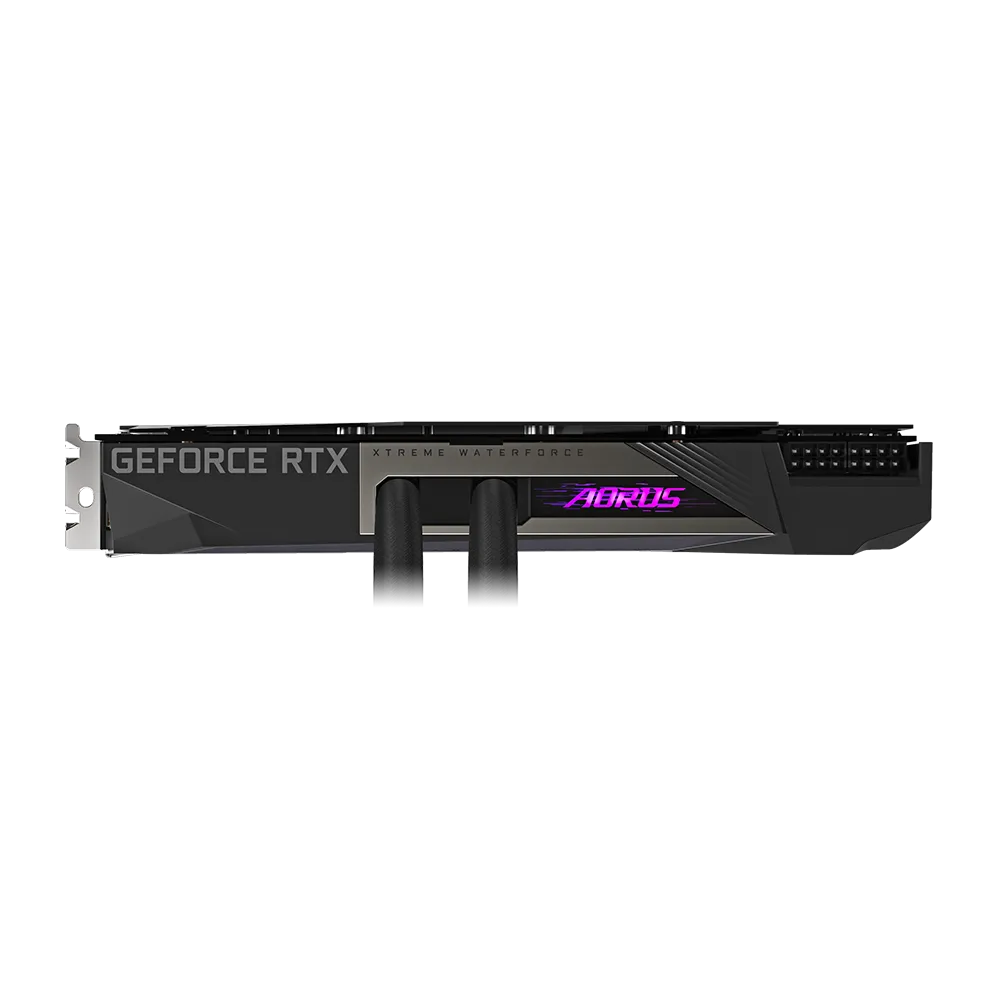

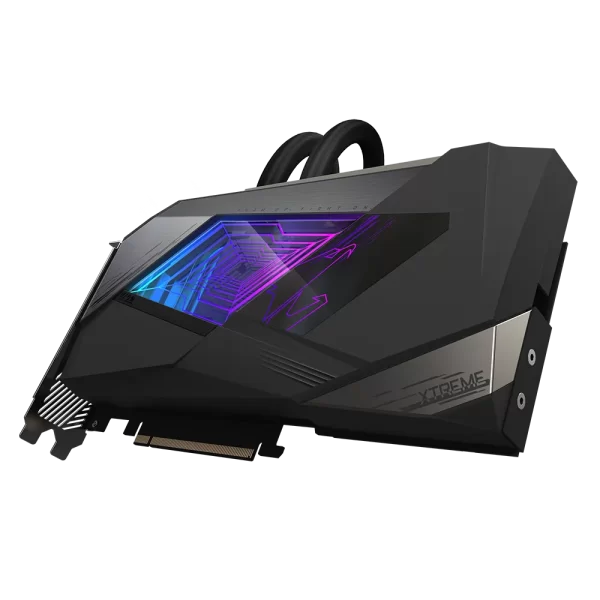

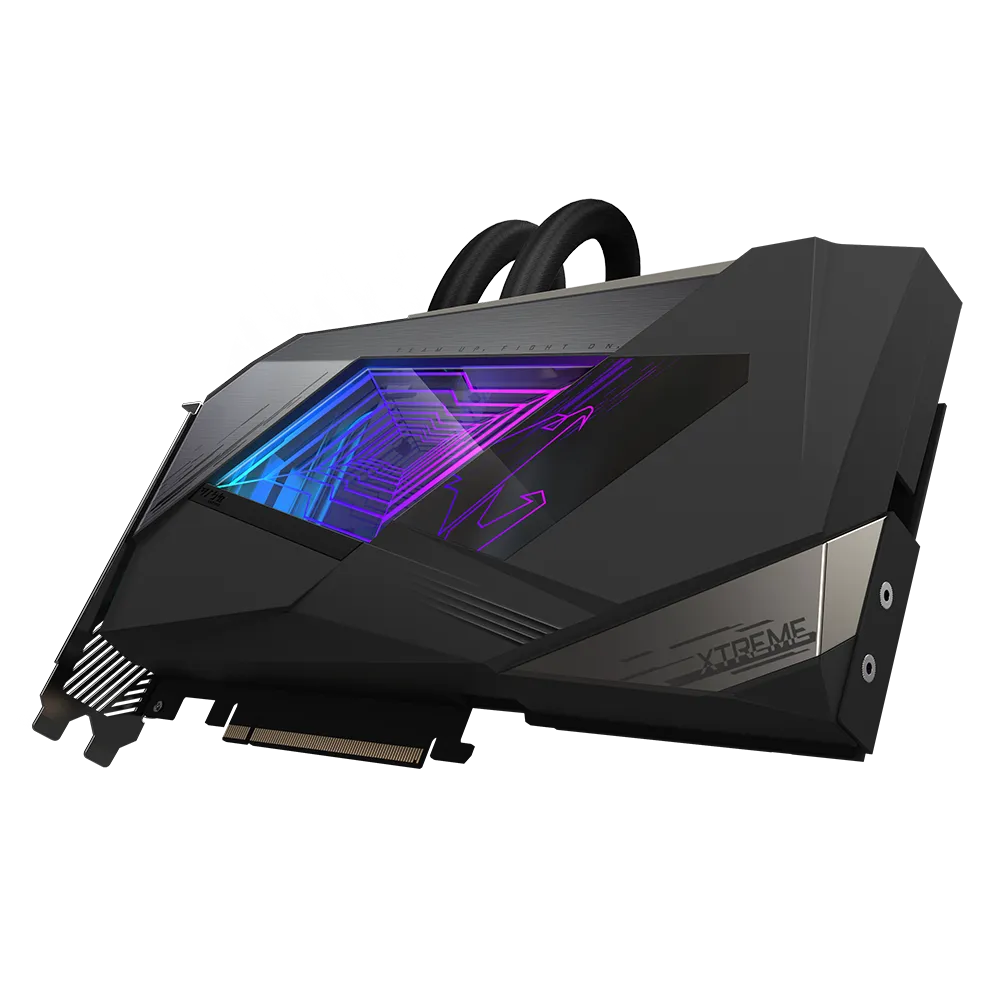

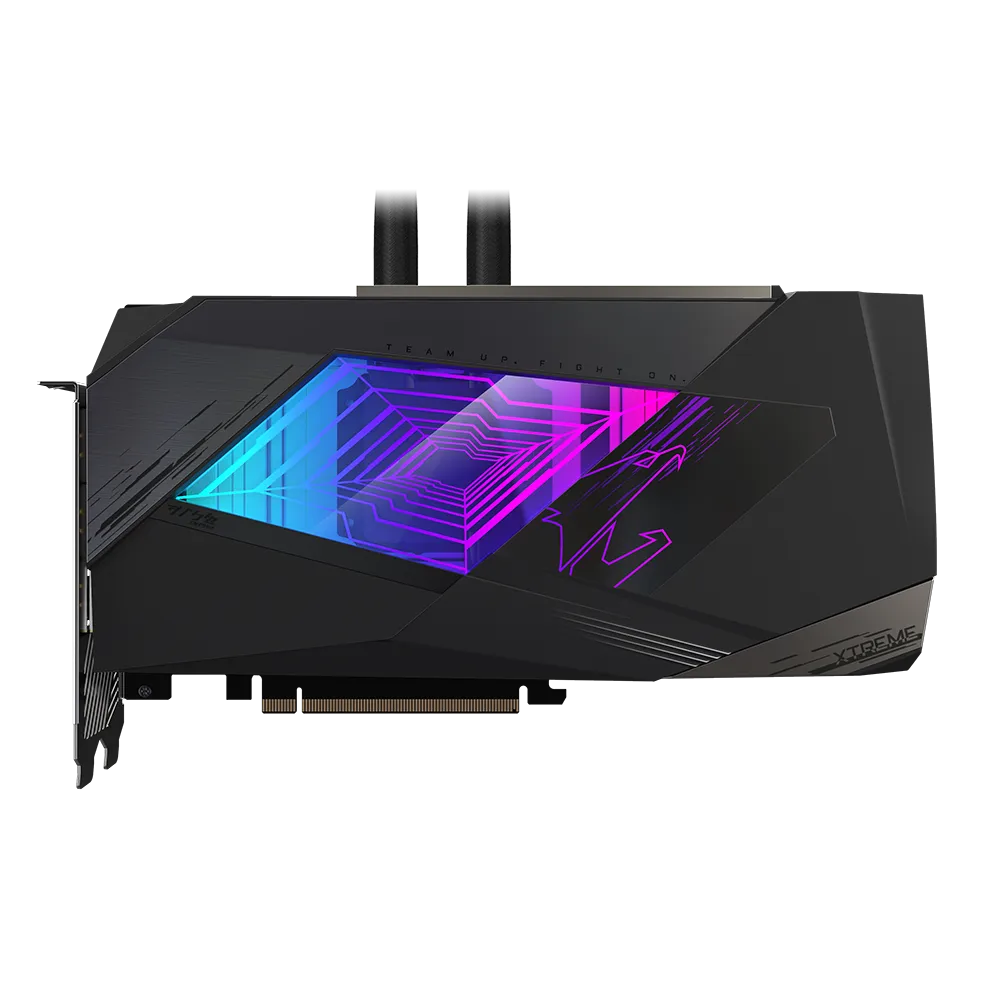

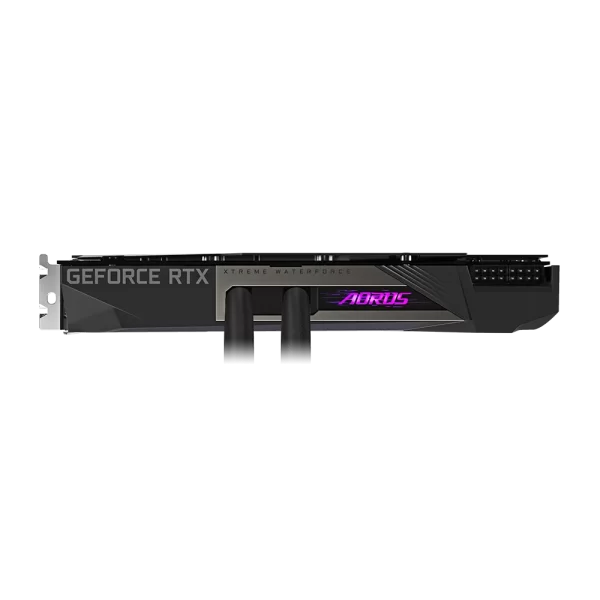

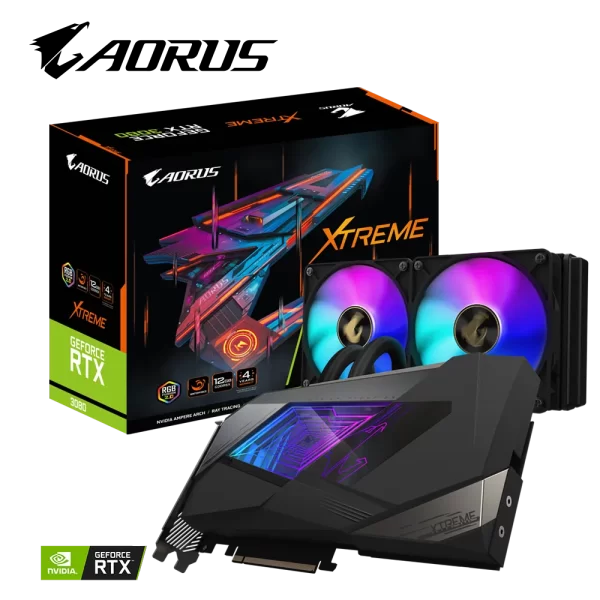

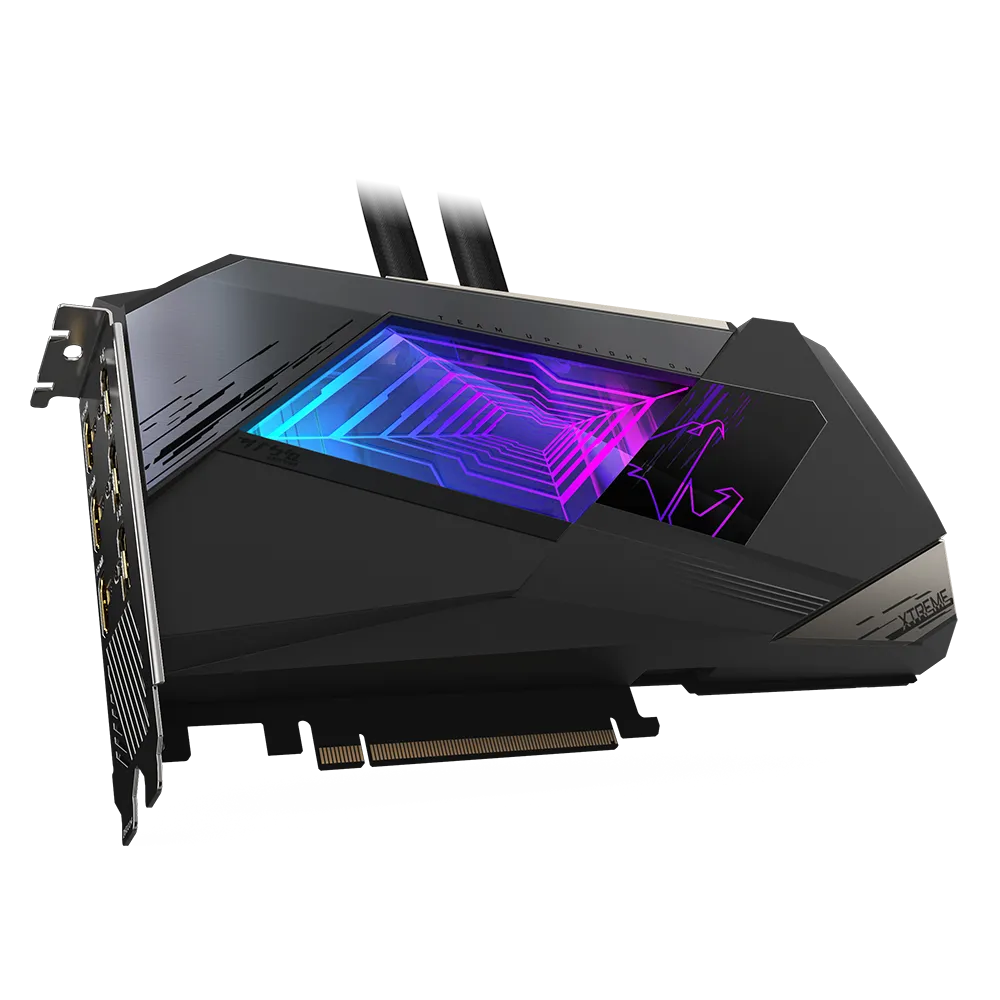

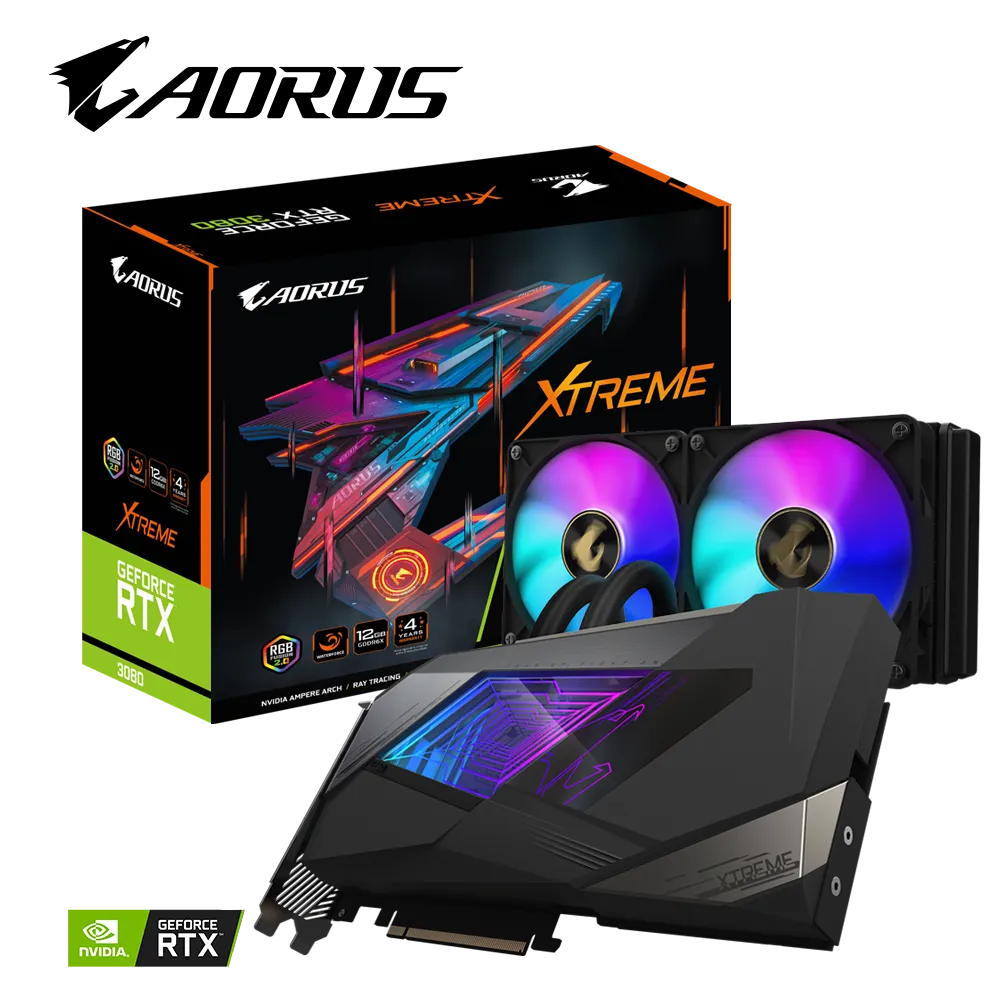

Gigabyte RTX 3080 Aorus Xtreme Waterforce 12GB

KEY FEATURE

NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3080
Integrated with 12GB GDDR6X 384-bit memory interface

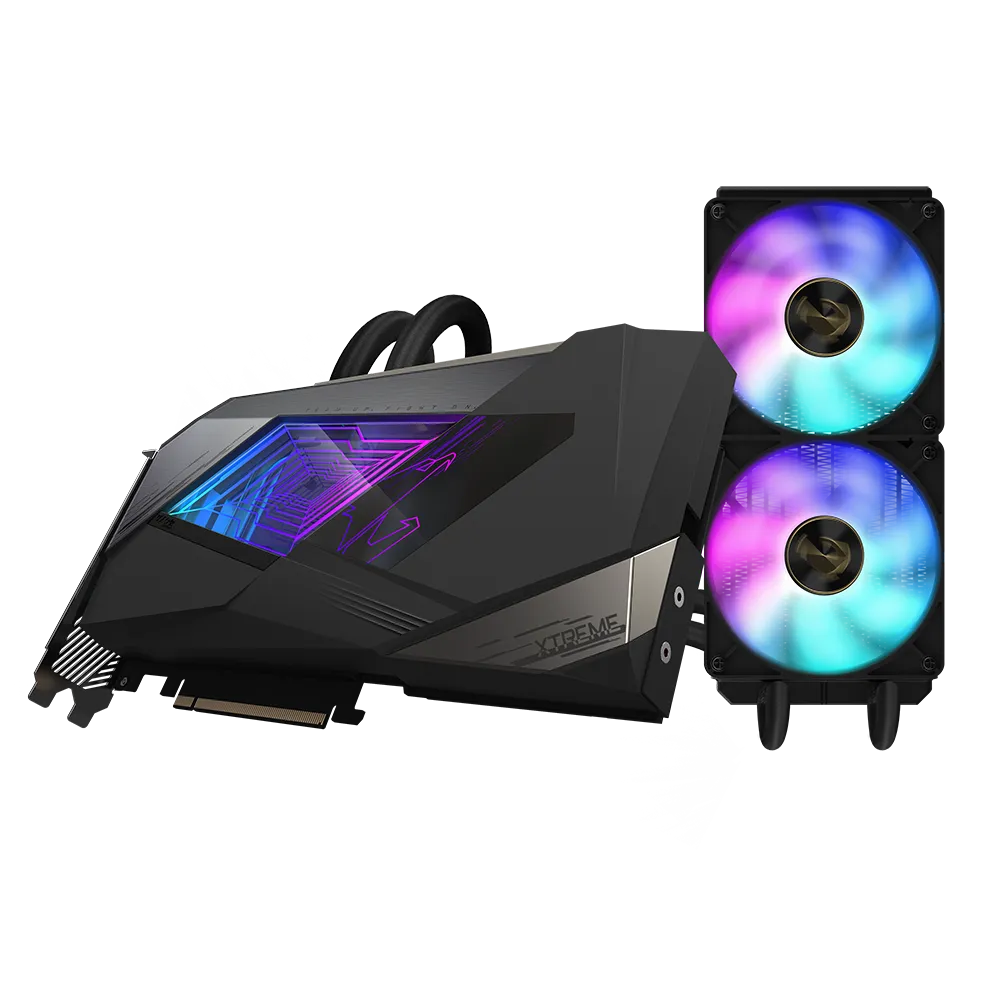

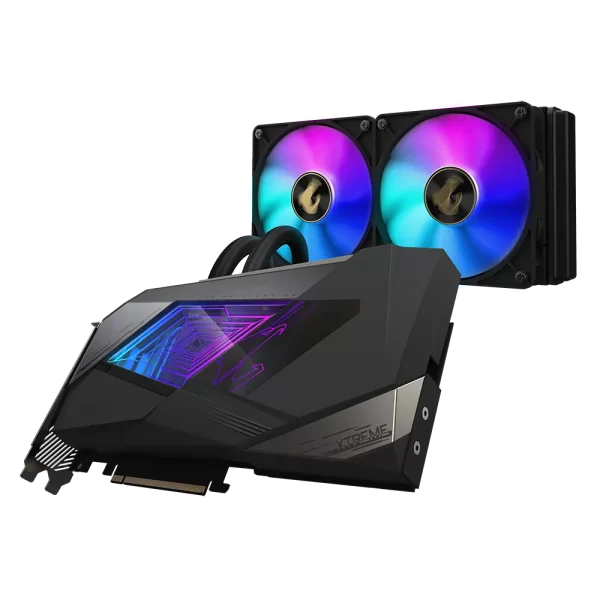

WATERFORCE all-in-one cooling system
240mm radiator with 2x 120mm ARGB fans
RGB Fusion 2.0
6 Outputs
Protection metal back plate
4 Years Warranty (Online registration required)

CORE CLOCK
1830 MHz (Reference Card: 1710 MHz)

Category:

Description

SPECIFICATIONS
Brand Gigabyte
Series GeForce RTX 30 Series
Model GV-N3080AORUS M-12GD
Chipset
GPU GeForce RTX 3080
Chipset Manufacturer NVIDIA
Interface PCI-E 4.0 x16
Base Clock 1260 MHz
Boost Clock 1830 MHz
CUDA Cores 8960
GPU Architecture NVIDIA Ampere Architecture
Memory
Effective Memory Clock 19000MHz
Memory Size 12GB
Memory Interface 384-bit
Memory Type GDDR6X
3D API
DirectX 12 Ultimate
OpenGL 4.6
Connectivity

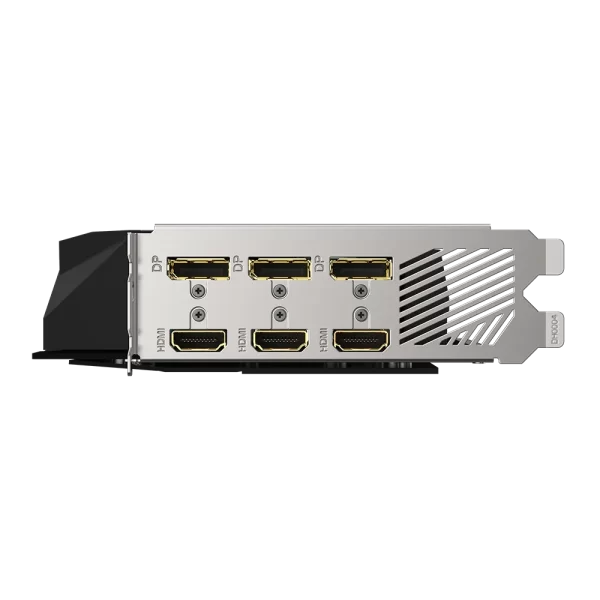

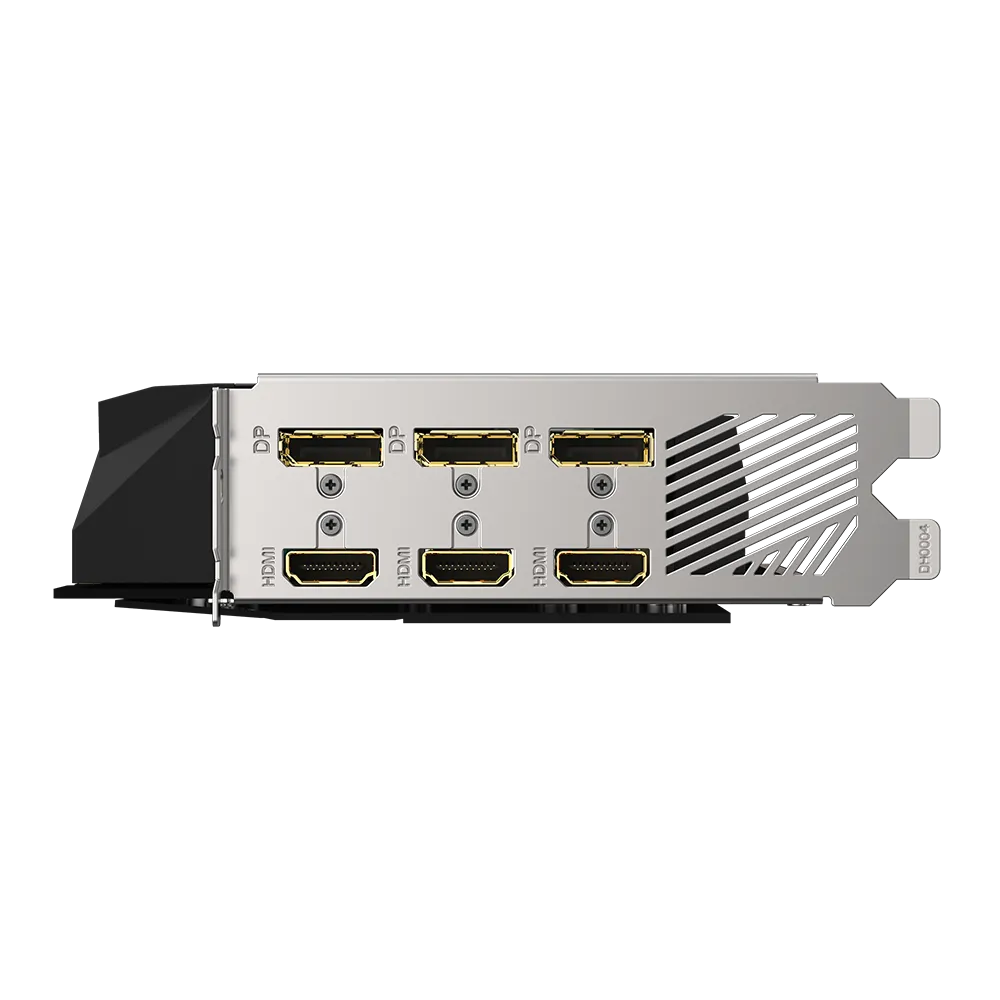

Ports 3x DisplayPort 1.4a
2x HDMI 2.1
1x HDMI 2.0
HDCP Support
Multi-Monitor Support 4x Displays
Maximum Digital Resolution 7680×4320
VR Ready Yes
General
Tube length 395mm ± 1.5%
Radiotor 240mm
Fan 2x 120mm
Features NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
NVIDIA Ampere Architecture
Real-Time Ray Tracing Technology
NVIDIA DLSS Ground-breaking AI Rendering Technology
Braided FEP Tubes
Optimized 240mm Aluminium Radiator
Gigabyte RGB Fusion 2.0 Technology
Power Indicators
Power Requirements
Recommended Power Supply 750W
Power Connector 2x 8-Pin
Physical Aspects
Form Factor ATX
Slot Width 2 Slot
Dimensions 252 x 135 x 40mm
Warranty Information
Warranty 3 Year Warranty
