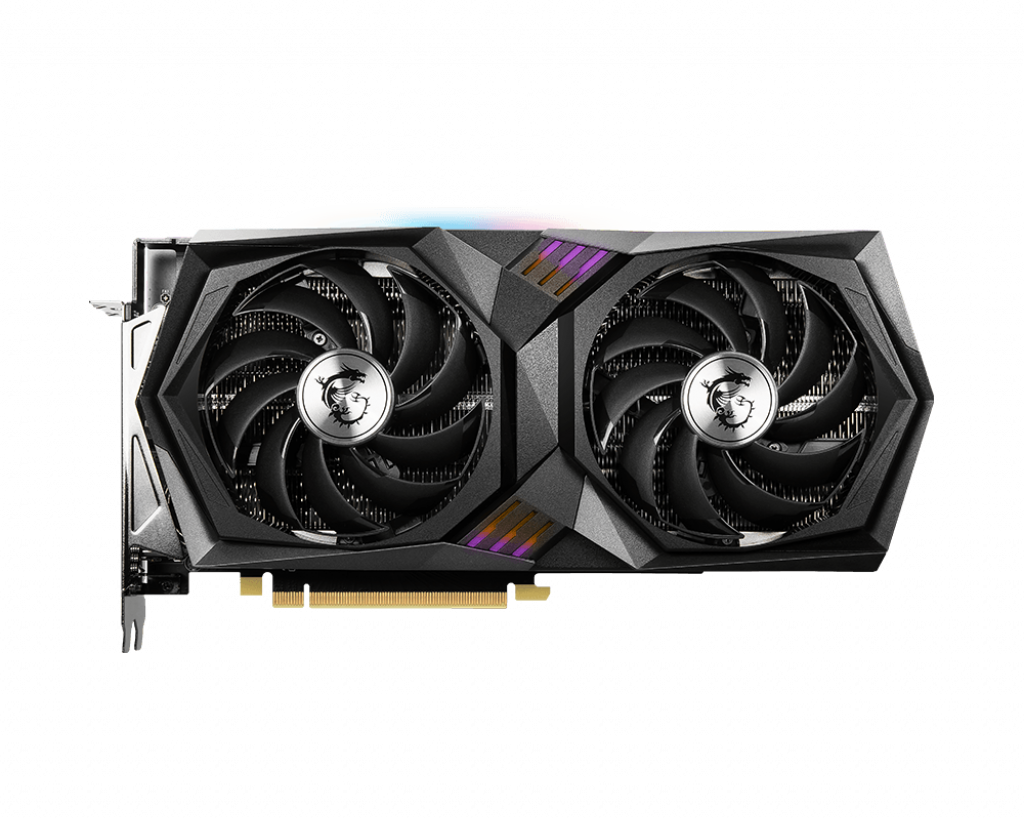

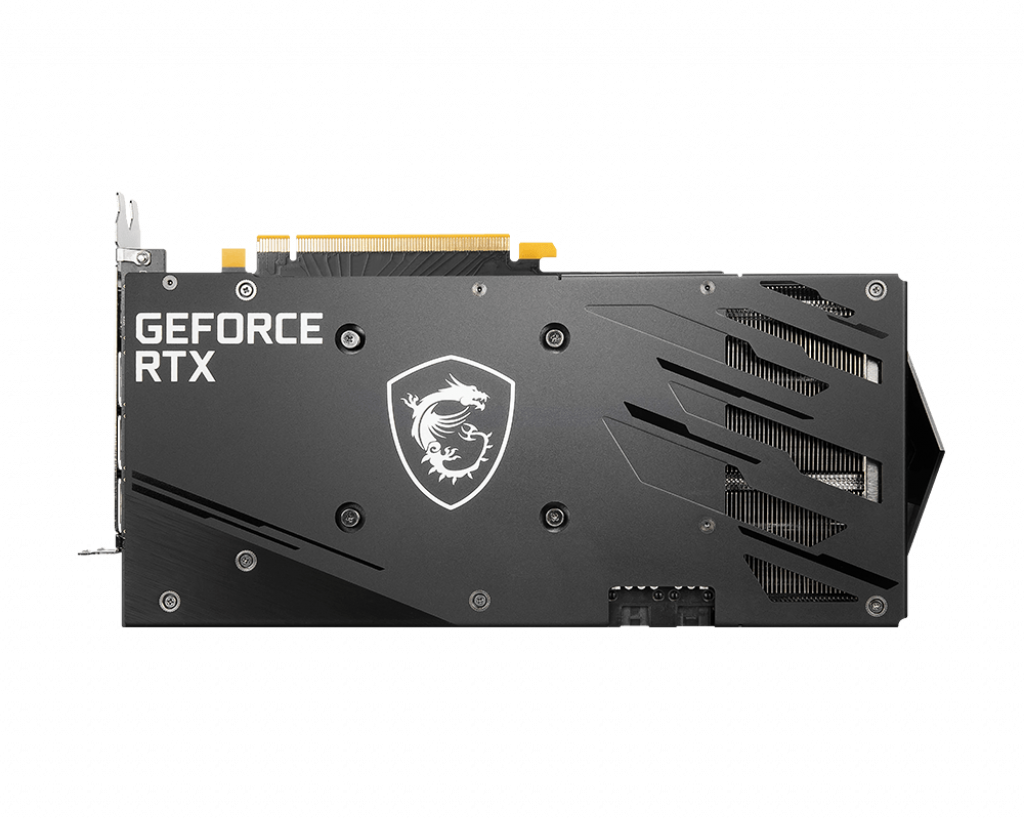

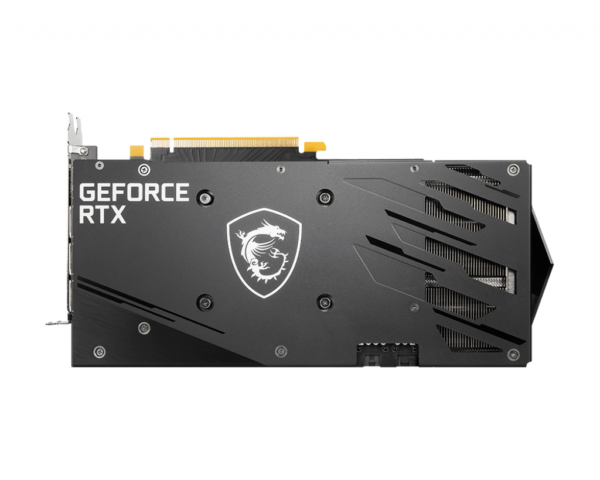

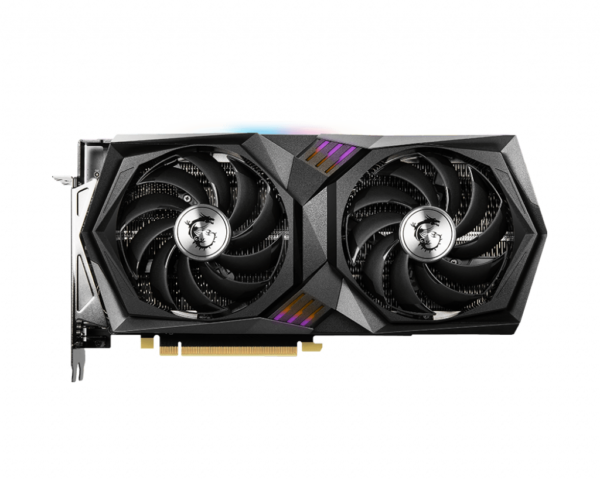

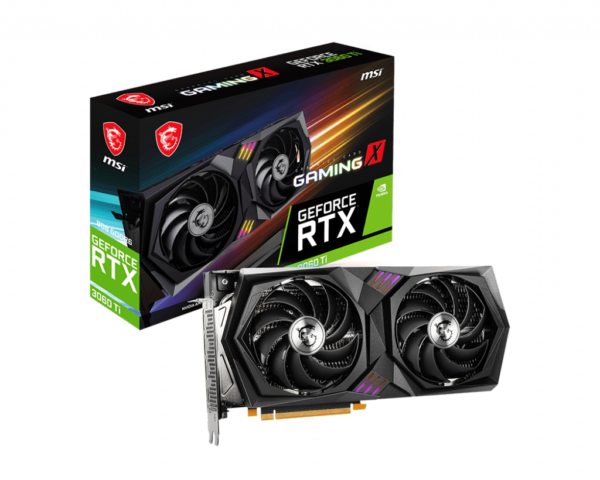

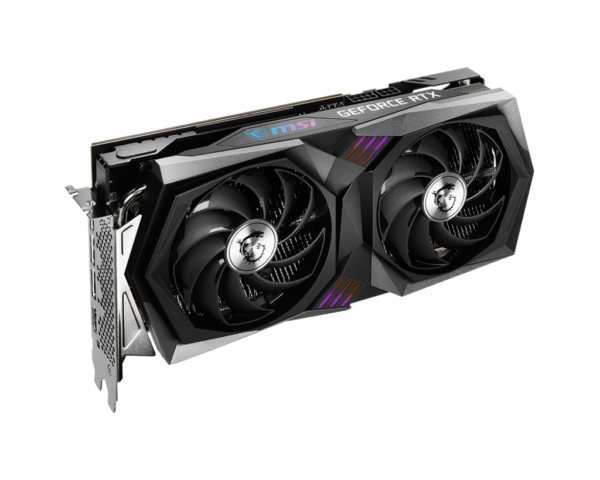

MSI RTX 3060 Ti GAMING X 8GB

GeForce RTX™ 3060 Ti GAMING X 8G LHR

The GeForce RTX™ 3060 Ti lets you take on the latest games using the power of Ampere—NVIDIA’s 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.

  • This GeForce RTX 3060 Ti graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.).

Boost Clock / Memory Speed

  • 1770 MHz / 14 Gbps
  • 8GB GDDR6
  • DisplayPort x 3
    HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

TWIN FROZR 8 Thermal Design

  • TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
  • Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
  • Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.

RGB Mystic Light

  • Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.
Category:

Description

SPECIFICATIONS
Brand MSI
Series RTX 3060 Ti
Model GAMING X 8G LHR Edition
Chipset
GPU GeForce RTX 3060 Ti
Chipset Manufacturer NVIDIA
Interface PCI-E 4.0
Base Clock 1410 MHz
Boost Clock 1770 MHz
CUDA Cores 4864
GPU Architecture NVIDIA Ampere
Memory
Effective Memory Clock 14 Gbps
Memory Size 8GB
Memory Interface 256-bIt
Memory Type GDDR6
3D API
DirectX Microsoft DirectX 12 Ultimate
OpenGL 4.6
Vulkan Vulkan RT API
Connectivity

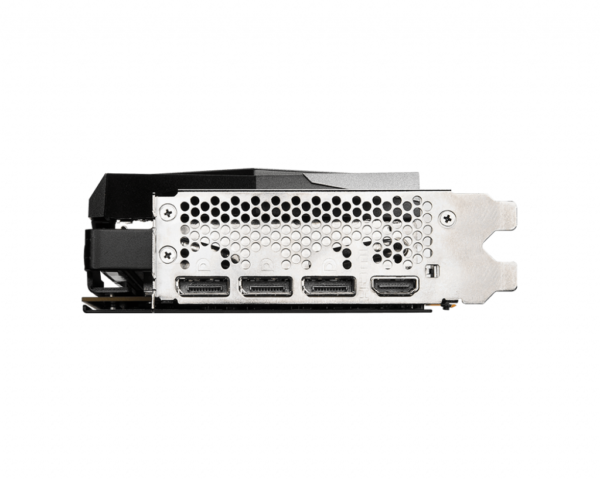

Ports 3x DisplayPort 1.4a
1x HDMI (Supports 4K@120Hz as specified in HDMI 2.1)
HDCP Support Yes
Multi-Monitor Support 4
Maximum Digital Resolution 7680×4320
VR Ready Yes
General
SLI Support N/A
Features MSI TORX Fan 4.0
Precision-crafted Heat Pipes Ensure Max Contact to the GPU
Airflow Control Guides the Air to Exactly Where it Needs to be
MSI RGB Mystic Light
MSI Center
2nd Gen Ray Tracing Cores
3rd Gen Tensor Cores
PCI Express Gen 4
Real-Time Ray Tracing Technology
NVIDIA DLSS
NVIDIA GeForce Experience
NVIDIA Ansel
NVIDIA FreeStyle
NVIDIA ShadowPlay
NVIDIA Highlights
NVIDIA G-SYNC
Game Ready Drivers
NVIDIA Studio Drivers
NVIDIA GPU Boost
NVIDIA Encoder, 7th Generation
NVIDIA Decoder, 5th Generation
Power Requirements
Recommended Power Supply 600W
Power Consumption 220W
Power Connector 1x 8-pin, 1x 6-pin
Physical Aspects
Form Factor ATX
Slot Width Dual Slot
Dimensions 278mm x 131mm x 51mm
Weight 1007g
Warranty Information
Warranty 3 Year Warranty
