Gigabyte RTX 3060 Ti Eagle 8GB

FEATURES

NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3060 Ti
Integrated with 8GB GDDR6 256-bit memory interface

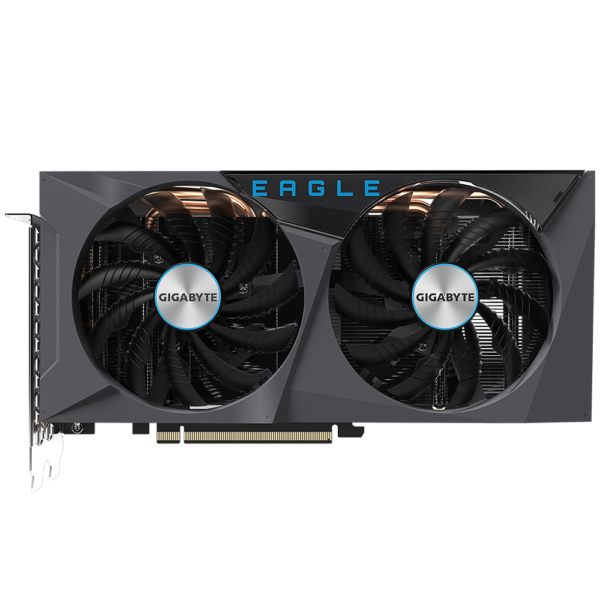

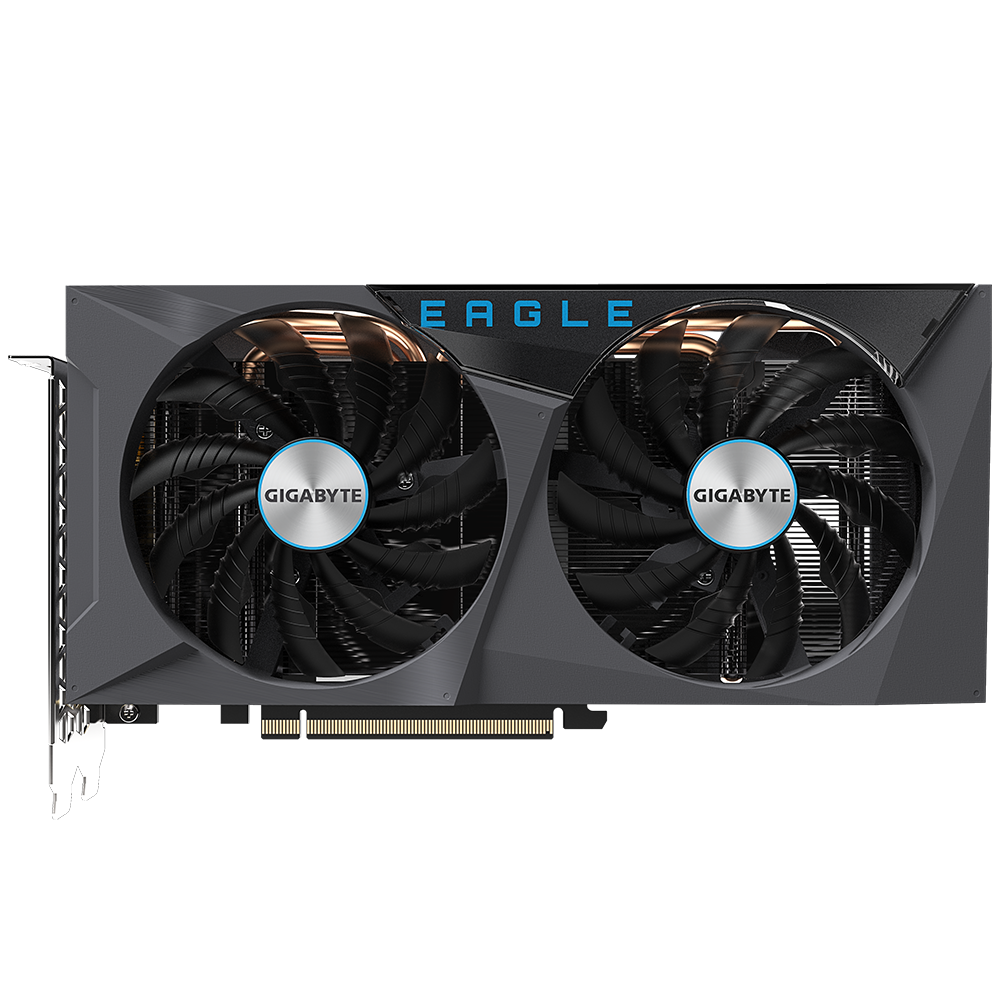

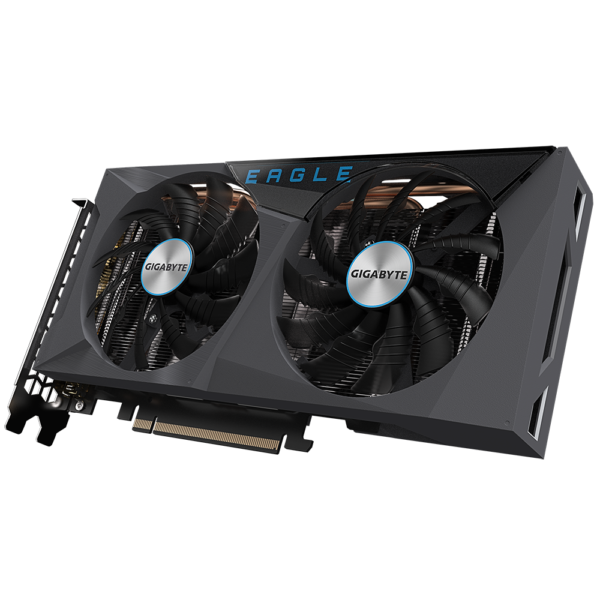

WINDFORCE 2X Cooling System with alternate spinning fans
100mm unique blade fans
RGB Fusion 2.0

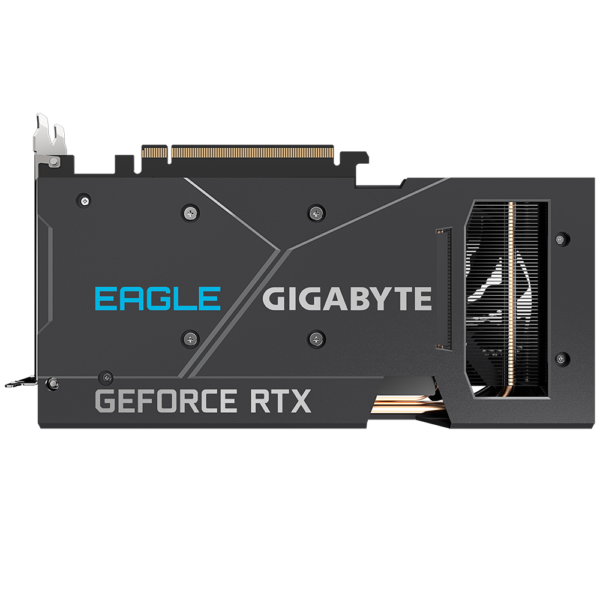

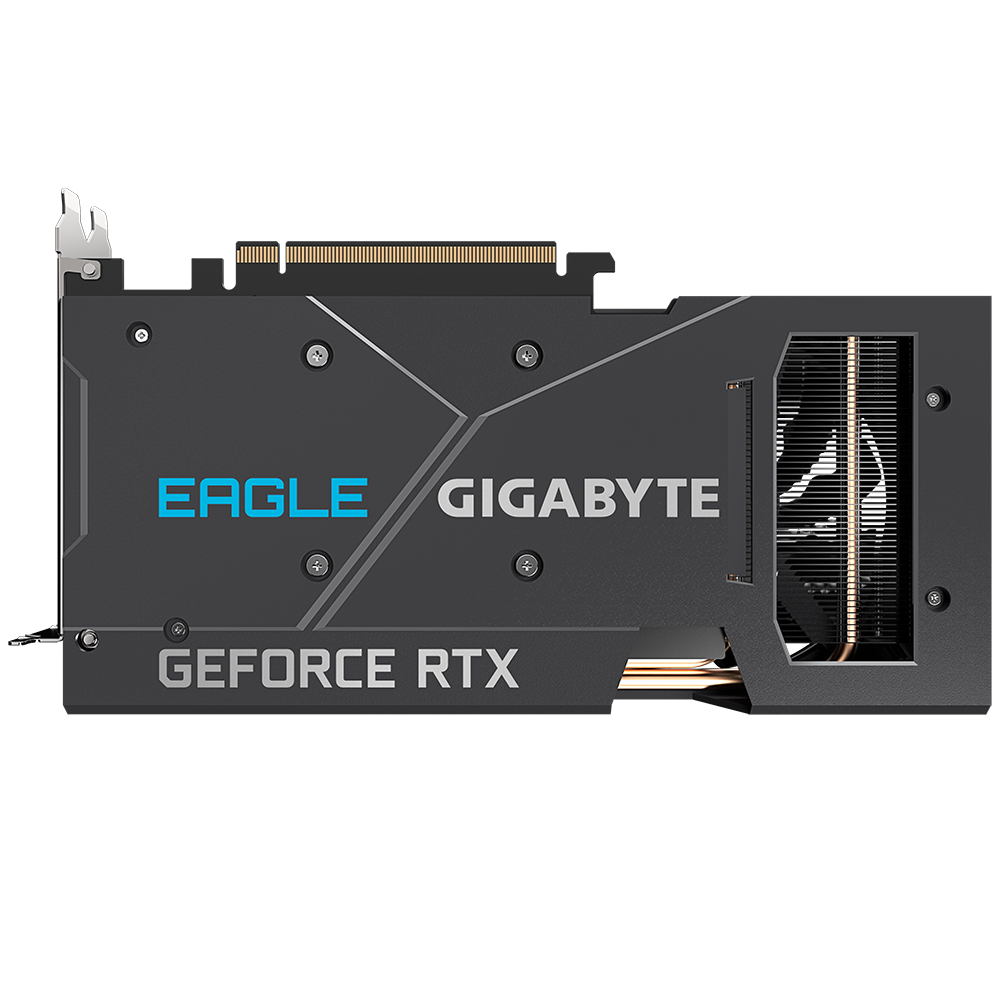

Protection back plate
LHR (Lite Hash Rate) version

CORE CLOCK
1665 MHz

Category:

Description

SPECIFICATIONS
Brand Gigabyte
Series GeForce RTX 30 Series
Model GV-N306TEAGLE-8GD
Chipset
GPU GeForce RTX 3060 Ti
Chipset Manufacturer NVIDIA
Interface PCI-E 4.0 x16
Base Clock 1410 MHz
Boost Clock 1665 MHz
CUDA Cores 4,864
GPU Architecture NVIDIA Ampere
Memory
Memory Clock 14 Gbps
Memory Size 8GB
Memory Interface 256-bit
Memory Type GDDR6
3D API
DirectX 12 Ultimate
OpenGL 4.6
Connectivity

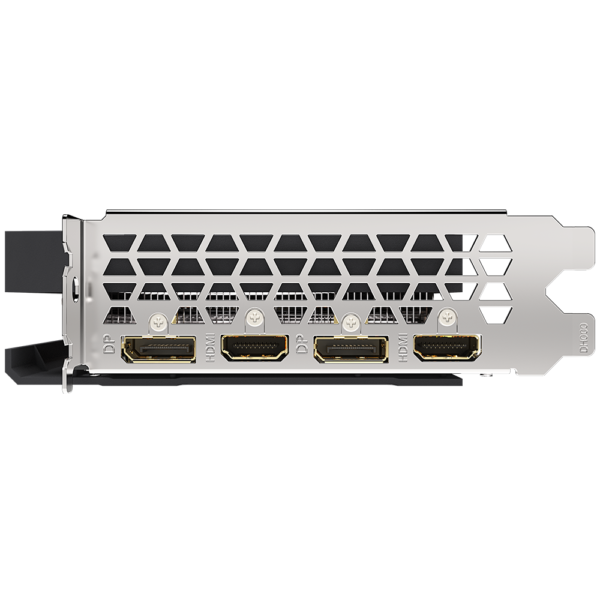

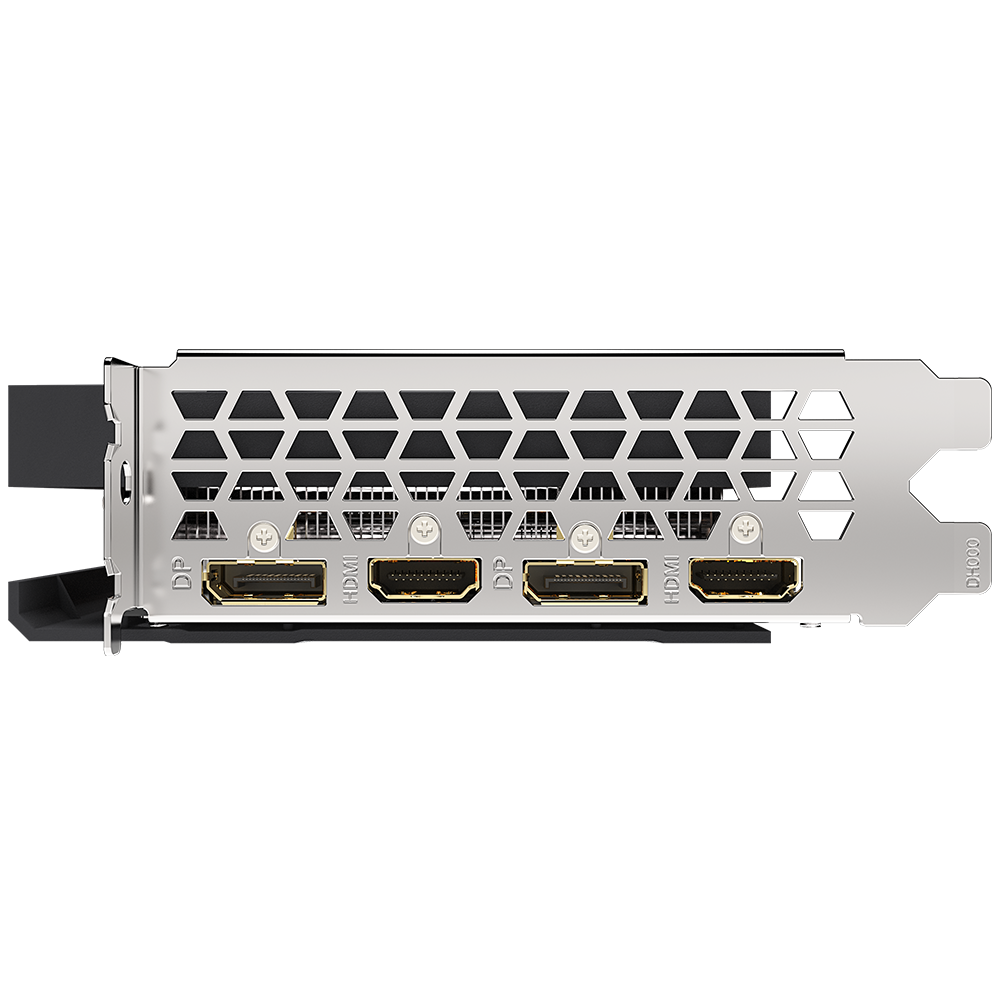

Ports 2x DisplayPort 1.4a
2x HDMI 2.1
HDCP Support Yes
Multi-Monitor Support 4 Displays
Maximum Digital Resolution 7680 x 4320
VR Ready Yes
General
Features WINDFORCE 2X Cooling System
100mm Unique Blade Fans
RGB Fusion 2.0
Protection Back Plate
2nd Gen Ray Tracing Cores
3rd Gen Tensor Cores
PCI Express Gen 4
Real-Time Ray Tracing Technology
NVIDIA DLSS
NVIDIA GeForce Experience
NVIDIA Ansel
NVIDIA FreeStyle
NVIDIA ShadowPlay
NVIDIA Highlights
NVIDIA G-SYNC
Game Ready Drivers
NVIDIA Studio Drivers
NVIDIA GPU Boost
NVIDIA Encoder, 7th Generation
NVIDIA Decoder, 5th Generation
Power Requirements
Recommended Power Supply 600 W
Power Connector 1x 8-Pin
Physical Aspects
Form Factor ATX
Slot Width 2.5 Slot
Dimensions 242 x 124 x 41 mm
Warranty Information
Warranty 3 Year Warranty
