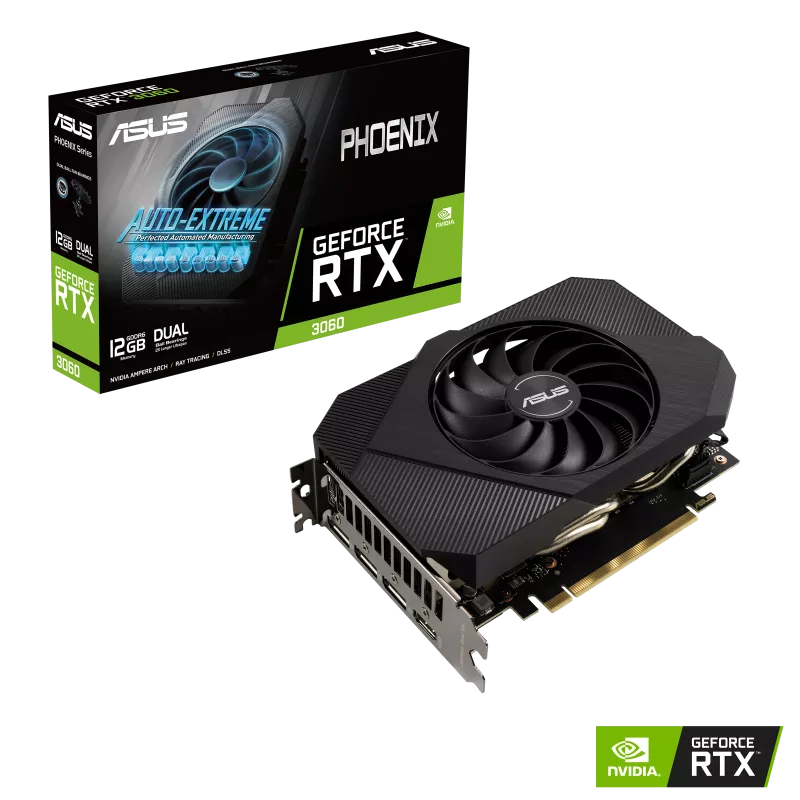

Asus RTX 3060 Phoenix 12GB

The ASUS Phoenix GeForce RTX™ 3060 12GB GDDR6 brings ultra high frame rates for today’s most popular titles.
  • NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
  • 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
  • 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
  • Axial-tech fan designfeatures a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
  • Auto-Extreme Technology uses automation to enhance reliability.
  • protective backplate prevents PCB flex and trace damage.
Category:

Description

SPECIFICATIONS
Brand ASUS
Series PHOENIX
Model RTX 3060 Phoenix (PH-RTX3060-12G-V2)
Chipset
GPU GeForce RTX 3060
Chipset Manufacturer NVIDIA
Interface PCI-E 4.0
Base Clock 1320 MHz
Boost Clock 1777 MHz
CUDA Cores 3584
GPU Architecture NVIDIA Ampere Architecture
Memory
Effective Memory Clock 15 Gbps
Memory Size 12GB
Memory Interface 192-bit
Memory Type GDDR6
Memory Bandwidth 360 GB/s
3D API
DirectX Microsoft DirectX 12 Ultimate
OpenGL 4.6
Vulkan 1.2
Connectivity
Ports 3x DisplayPort 1.4a
1x HDMI 2.1
HDCP Support v2.3
Multi-Monitor Support 4
Maximum Digital Resolution 7680 x 4320 @60Hz
VR Ready Yes
General
SLI Support No
Cooling ASUS Axial Fan Technology
Features All-Metal Backplate
Dual ball fan bearings can last up to twice as long as sleeve bearing designs
Auto-Extreme Technology uses automation to enhance reliability
2nd Gen Ray Tracing Cores
3rd Gen Tensor Cores
PCI Express Gen 4
Real-Time Ray Tracing Technology
NVIDIA DLSS
NVIDIA GeForce Experience
NVIDIA Ansel
NVIDIA FreeStyle
NVIDIA ShadowPlay
NVIDIA Highlights
NVIDIA G-SYNC
Game Ready Drivers
NVIDIA Studio Drivers
NVIDIA GPU Boost
NVIDIA Encoder, 7th Generation
NVIDIA Decoder, 5th Generation
Power Requirements
Minimum Recommended Power Supply 650W
Power Consumption 170W
Power Connector 1x 8-Pin
Physical Aspects
Form Factor ATX
Slot Width 2.55 Slots
Dimensions 177 x 128 mm (LxW)
Warranty Information
Warranty 3 Year Warranty
