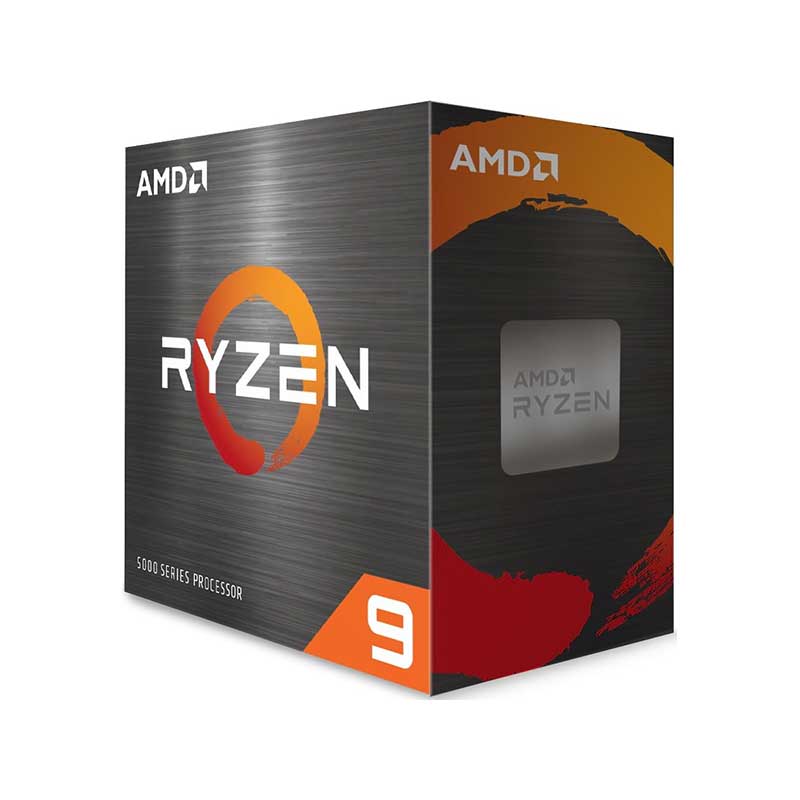

AMD Ryzen 9 5950X 16 Core CPU with SMT (No Cooler) Unlocked Multiplier Socket AM4 3.4GHz (4.9GHz Boost)

SKU 100-100000059WOF
Base Clock Speed
3.40 GHz
Maximum Boost Speed
4.90 GHz
Cores 16
Threads 32
Cache L1 Cache: 1 MB
L2 Cache: 8 MB
L3 Cache: 64 MB
L4 Cache: None
RAM Support DDR4-3200
PCI Express Version PCIe 4.0
Integrated Graphics
None
Included Heatsink
No
Unlocked Multiplier for Overclocking
Yes
TDP 105w
Manufacturer
Manufacturer’s Website Link
Product Website Link
Warranty Information
Warranty Duration 3 Years
Category:

Description

General Specifications
Platform
Boxed Processor
Product Family
AMD Ryzen™ Processors
Product Line
AMD Ryzen™ 9 Desktop Processors
# of CPU Cores
16
# of Threads
32
Max. Boost Clock
Up to 4.9GHz
Base Clock
3.4GHz
L2 Cache
8MB
L3 Cache
64MB
Default TDP
105W
Processor Technology for CPU Cores
TSMC 7nm FinFET
Unlocked for Overclocking
Yes
CPU Socket
AM4
Thermal Solution (PIB)
Not included
Max. Operating Temperature (Tjmax)
90°C
Launch Date
11/5/2020
*OS Support
Windows 10 – 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
PCI Express® Version
PCIe 4.0
System Memory Type
DDR4
System Memory Specification
Up to 3200MHz
Product IDs
Product ID Boxed
100-100000059WOF
Product ID Tray
100-000000059
Key Features
Supported Technologies
AMD “Zen 3” Core Architecture
AMD StoreMI Technology
AMD Ryzen™ Master Utility
