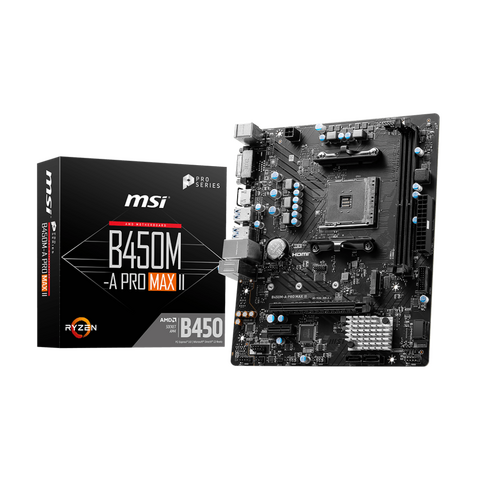

MSI B450M-A PRO MAX II AMD B450 Socket AM4 Micro-ATX Desktop Motherboard
MSI B450M-A PRO MAX II
Description
- Micro-ATX Form Factor
- AMD B450 Chipset
- Socket AM4
- Supports Ryzen 5000 / 5000G/GT / 4000G-Series Processors
- Supports Ryzen 3000 / 3000G / 2000 / 2000G / 1000-Series Processors
- Supports Ryzen & Athlon Processors with Radeon Vega Graphics
- 2x DDR4 DIMM Slots, Supports Up to 64GB
- Supports up to DDR4-4133MHz (OC A-XMP)
- 1x PCIe 3.0 x16 Slot (x16 Physical)
- 1x PCIe 2.0 x1 Slot (x1 Physical)
- 1x M.2 2280 PCIe 3.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 4x USB 5Gbps Type-A Ports
- 2x USB 2.0 Type-A Ports
- 1x HDMI 1.4b Port, 1x DVI-D Port
- 3x 3.5mm Audio Jacks (Line Out, Line In, Microphone)
- 2x PS/2 Ports (Keyboard, Mouse)
- Realtek RTL8125 2.5 Gigabit Ethernet RJ-45 LAN Port
- Realtek ALC897 High-Definition Audio Codec
- MSI Center Software
- Supports Windows 10, Windows 11 64-bit
- 3 Year Warranty
