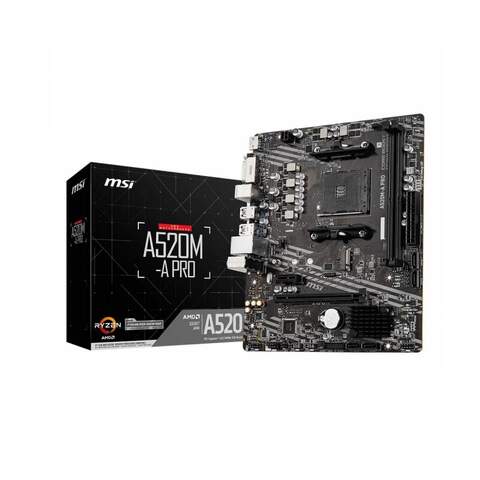

MSI A520M-A PRO AMD A520 Chipset Socket AM4 Micro ATX Desktop Motherboard

CPU

Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors

Chipset

AMD A520

Memory

2x DDR4 memory slots, support up to 64GB

Supports DDR4 1866 / 2133 / 2400 / 2667 / 2800 / 2933 / 3000 / 3066 / 3200 MHz by JEDEC

Supports DDR4 2667 / 2800 / 2933 / 3000 / 3066 / 3200 / 3466 / 3600 / 3733 / 3866 / 4000 / 4133 / 4266 / 4400 / 4600+ MHz by A-XMP OC MODE

1DPC 1R max speed 4600 MHz

1DPC 2R max speed 3866 MHz

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Onboard Graphics

1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz

Support for HDMI 1.4 version, HDCP 1.4 & 2.3

1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

* Maximum shared memory of 16 GB

* Available for the processor with integrated graphics.

* Graphics specifications may vary depending on the CPU installed.

Audio

Realtek ALC892/ALC897 Codec

7.1-Channel High Definition Audio

LAN

Realtek RLT8111H Gigabit LAN controller

Wireless Communication Module

None

Expansion Slots

1x PCIe 3.0 x1 slot

1x PCIe x16 slot

* The supported specification depends on installed processor.

Multi-Graphics Technology

N/A

Storage Interface

AMD A520 Chipset

4x SATA 6Gb/s ports

1x M.2 slot (Key M) (from AMD Processor)

Supports PCIe 3.0

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

The supported specification depends on installed processor.

USB

AMD A520 Chipset

2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x M.2 slots (M-Key)

1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 4-pin CPU fan connector

1 x 4-pin system fan connectors

1 x Front panel audio connector

2 x System panel connectors

1 x Chassis Intrusion connector

1 x TPM module connector

1 x Clear CMOS jumper

Back Panel Connectors

1 x LAN port

1 x HDMI

1 x DVI-D

2 x Keyboard / Mouse

4 x USB 3.2 Gen 1 5Gbps Type-A

2 x USB 2.0 Ports

3 x Audio Connectors

I/O Controller

N/A

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

BIOS

N/A

Unique Features

N/A

Bundled Software

Driver disc

Operating System

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor, 23.6cm x 20.0cm
