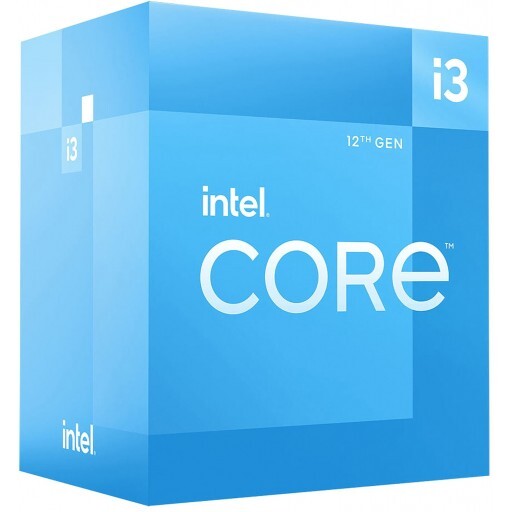

Intel Core i3-12100F Quad Core 3.30GHz Alder Lake LGA1700 Desktop CPU
Description
SPECIFICATIONS
Brand Intel
Series 12th Gen Alder Lake
Model i3-12100F (BX8071512100F)
Essentials
Vertical Segment Desktop
Lithography Intel 7
CPU Specifications
Total Cores 4
Number of Performance-cores 4
Number of Efficient-cores 0
Total Threads 8
Max Turbo Frequency 4.30 GHz
Performance-core Max Turbo Frequency 4.30 GHz
Efficient-core Max Turbo Frequency N/A
Performance-core Base Frequency 3.30 GHz
Efficient-core Base Frequency N/A
Cache 12 MB Intel Smart Cache
Total L2 Cache 5 MB
Processor Base Power 58 W
Maximum Turbo Power 89 W
Supplemental Information
Stock Cooler Yes, Intel RM1 Boxed Stock Cooler
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max Number of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
Expansion Options
Direct Media Interface (DMI) Revision PCIe 4.0
Max Number of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations Up to 1 x 16 4; 2 x 8 4
Max Number of PCI Express Lanes 20
Package Specifications
Max CPU Configuration 1
Thermal Solution Specification PCG 2020C
TJUNCTION 100° C
Package Size 45.0 x 37.5 mm
Advanced Technologies
Intel Gaussian & Neural Accelerator 3.0
Intel Thread Director No
Intel Deep Learning Boost (Intel DL Boost) Yes
Intel Optane Memory Supported Yes
Intel Speed Shift Technology Yes
Intel Turbo Boost Max Technology 3.0 No
Intel Turbo Boost Technology 2.0
Intel Hyper-Threading Technology Yes
Intel Virtualization Technology (VT-x) Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel SSE4.1 | Intel SSE4.2 | Intel AVX2
Idle States Yes
Enhanced Intel SpeedStep Technology Yes
Thermal Monitoring Technologies Yes
Intel Volume Management Device (VMD) Yes
Security & Reliability
Intel AES New Instructions Yes
Secure Key Yes
Intel OS Guard Yes
Execute Disable Bit Yes
Intel Boot Guard Yes
Mode-based Execute Control (MBE) Yes
Intel Control-Flow Enforcement Technology Yes
Warranty Information
Warranty 3 Year Warranty
